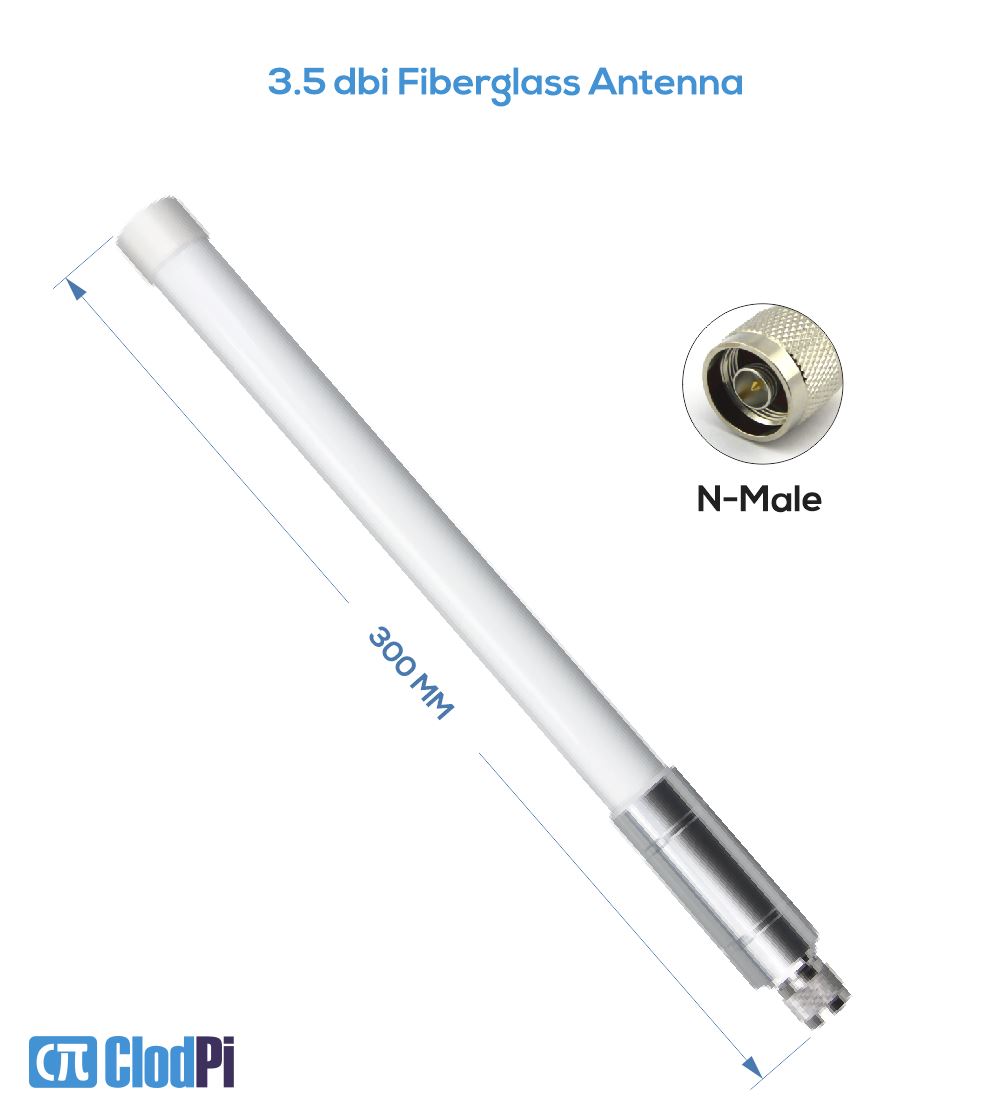

3.5 dbi Fiberglass Antenna

3.5 dbi Fiberglass LoRa Antenna

₹2,199.00 ₹2,500.00
(Incl. of 18%GST)
Payment Method: UPI/Card/Net Banking

IMPORTANT

Users are expected to provide correct User Name, Email ID, Contact Number, GSTIN Details(if applicable), Shipping Address and Billing Address before placing the order. No change requests will be accepted once order is placed.

Right now, only one unit will be provided per Order number. But, there is no limit to number of orders per person.


Product: Omni directional - 3.5dBi - N Male Connector - High Performance – Fiberglass – Wireless LoRa Antenna


Frequency: IN865

Free Shipping across India

Shipment: *Five Working days from the date of Payment.

Choose Quantity
+ Order Now
Product Details

The 3.5 dBi high performance “fiberglass” antenna is capable of providing a broad range / coverage.


Specifications:

Frequency Range

865 - 867 MHz

Center Frequency

866 MHz

Gain

3 + 0.5 dBi

Impedance

50 Ω

Power (Max)

100 Watts

VSWR

< 1.5

Lightning Protection

Direct Grounding

Weight

200 Gms

Length

300 mm

Diameter (Max)

16.7 mm

Connector

N Male

Color & Finish

White

Polarization

Vertical

Directional

Omni

Material

Fiberglass

Compatible

ROHS


Warranty: Antenna expected to be used / installed are per the User manual provided by ClodPi Labs (India) Pvt Ltd to achieve the maximum performance. ClodPi Labs do not provide any warranty on Enclosure, Antenna, PoE Splitter, Surge Arrestor, and other supported accessories. User should be careful when setting up the device and strictly follow the user guide and safety instructions to avail the Warranty services on the Product as mentioned below.

For clarity, this warranty only covers the ClodPi Labs Hotspot hardware itself, and does not cover any software, other hardware, tokens, products or services Helium may provide.

Shipment Issues: Any issue with shipment should be reported within 24 hours of shipment receipt by the customer / representative of the customer along with the photo of the shipment package received and the device.
